4818ft AFL Quad-Link 4-Fiber 10G 300m 3.1mm 900�m Bare Plenum Fiber Optic Cable

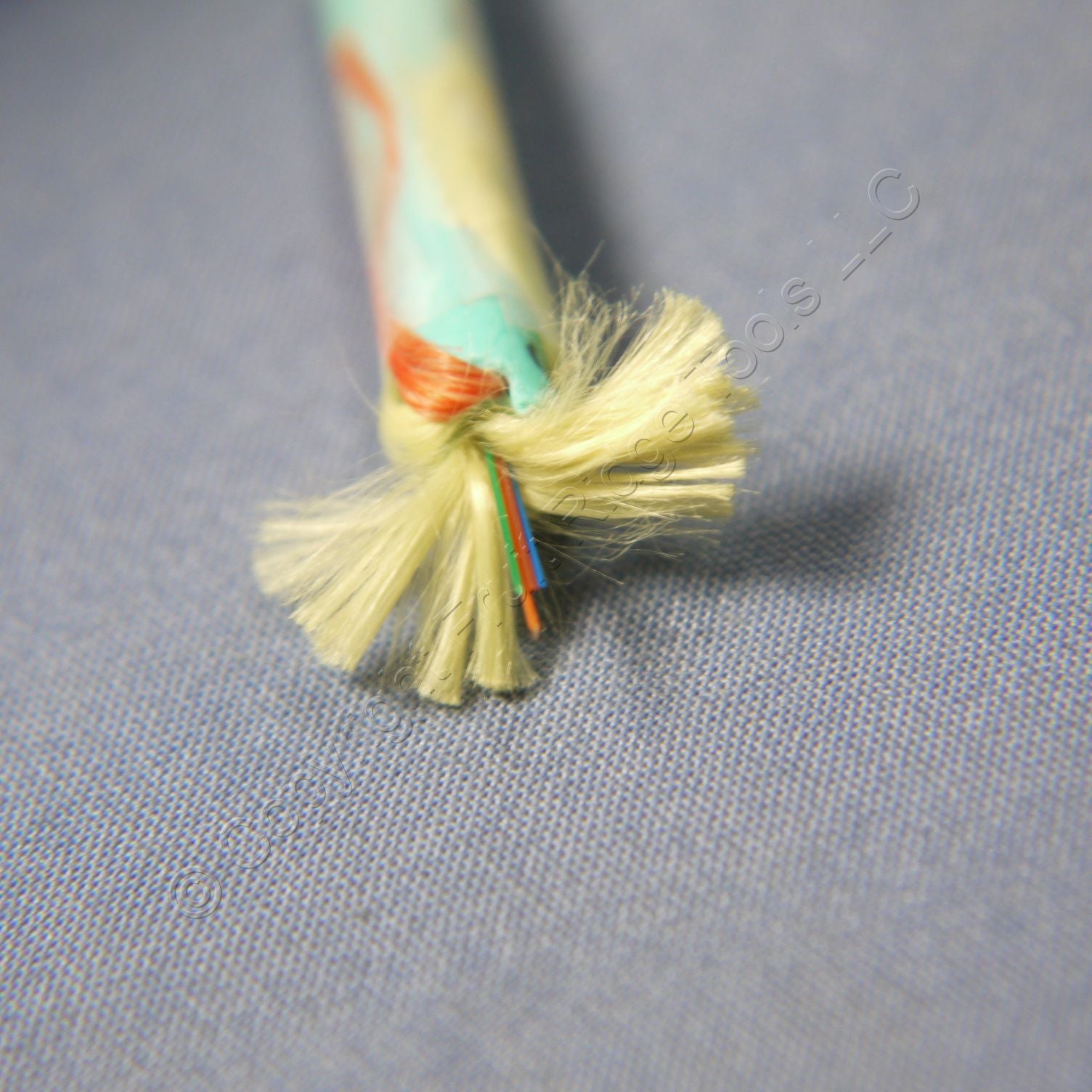

4818 feet AFL Telecommunication (Part # UP004L312CCB) NON-standard 3.1mm 4-Fiber plenum 50/125�m multimode Laser-Link 300 for 10 Gigabit Ethernet fiber optic cable. The round cross-sectional building blocks combine to provide a tight package, while enabling high density architecture. Each unit consists of 250 �m colored fibers and aramid strength members enclosed by a high performance jacket. The sub-units are designed to be independently routed in FMS systems. Features include:

• In-building cable runs where space is a premium
• Trunk applications where flexibility and small required bend radius are needed to route cable
• High density cable areas like Data Centers and Central Offices
• Lower cost cable runs where easy handling of tight buffered fibers not needed because cable will be spliced to factory terminated pigtails
• Trunk cables where MTP can be directly terminated on subunits
• Plenum NFPA 262 rated
• Tested to meet or exceed EIA/TIA 568-B3, Telcordia GR-409-CORE and ANSI/ICEA S-83-596
• Flexible dielectric FRP central strength member in four position
• High performance PVC jacket
• No preferential bend typically found in stacked ribbon designs
• Small diameter/superior bend performance
• All aramid tensile strength members within sub-units
• Sub-units are suitable for direct termination with round boot MTP
• Tested to meet or exceed EIA/TIA 568-133 and Telcordia GR-409-CORE
• LSZH meets the requirements of IEC 61034-1, 61034-2, 60332-1-1, 60332-1-2, 60754-1, 60754-2
• Compliant to Directive 2002/95/EC (RoHS)
• Plenum-rated jacket
• Bare tight buffer type
• Nominal Diameter: 0.19in
• Tension Installation: 100lbs
• Tension Long-Term: 30lbs
• Bending Radius Installation: 3.0in
• Bending Radius Long Term: 2.0in
• 50/125�m multi-mode Laser-Link 300 for 10 Gigabit Ethernet
