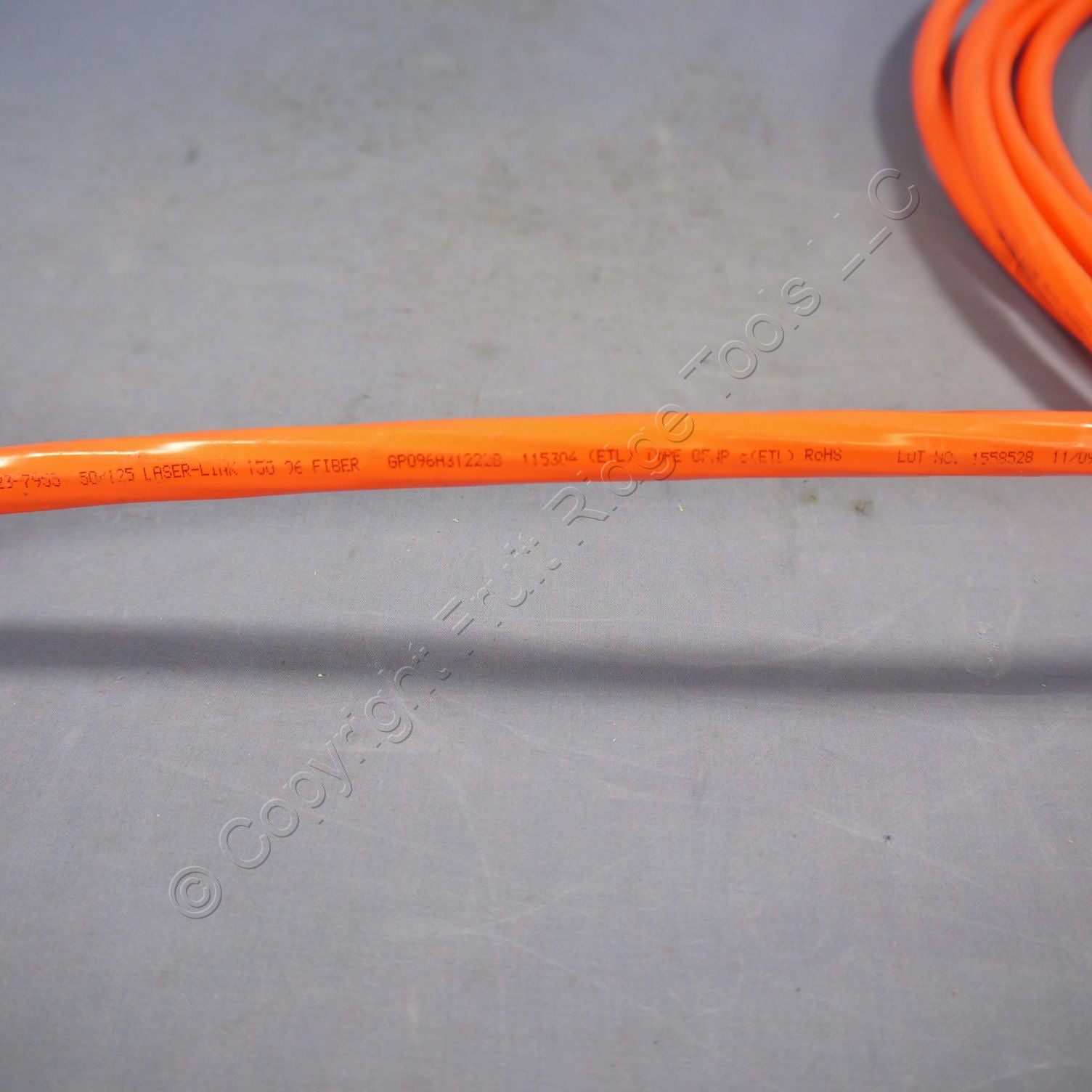

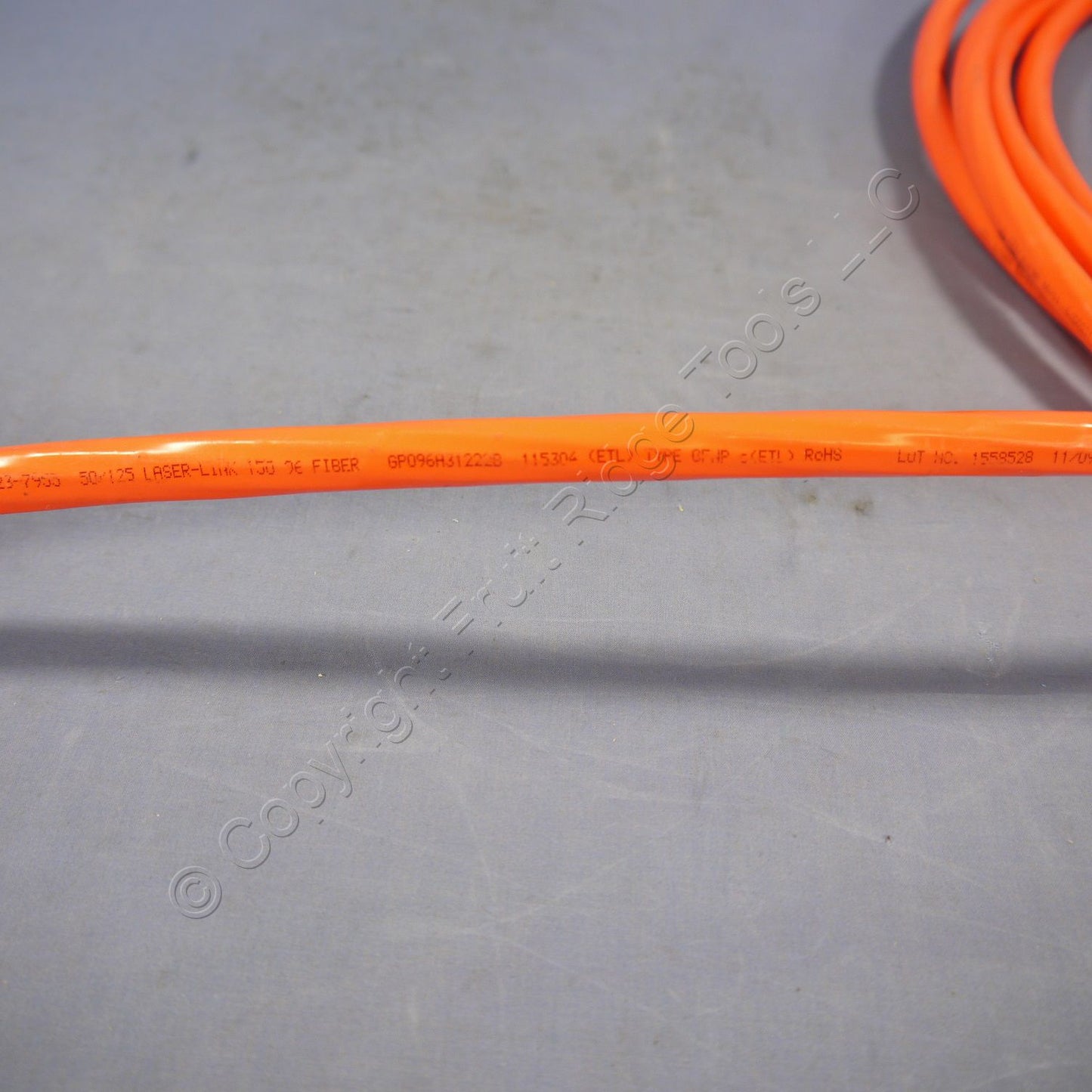

32-ft AFL 96-Fiber Multi-Mode Sub-Unitized Premise MicroCore� Fiber Optic Cable

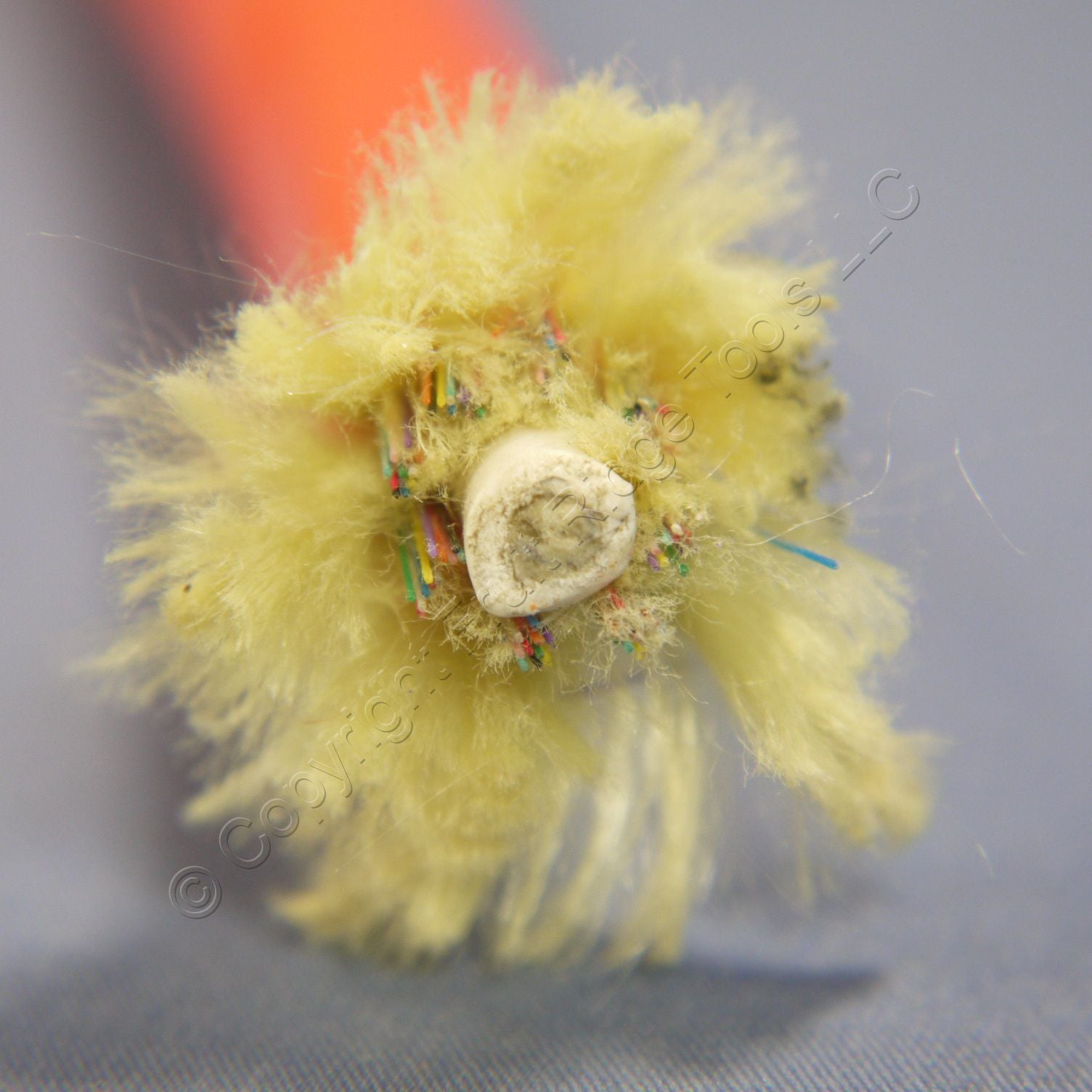

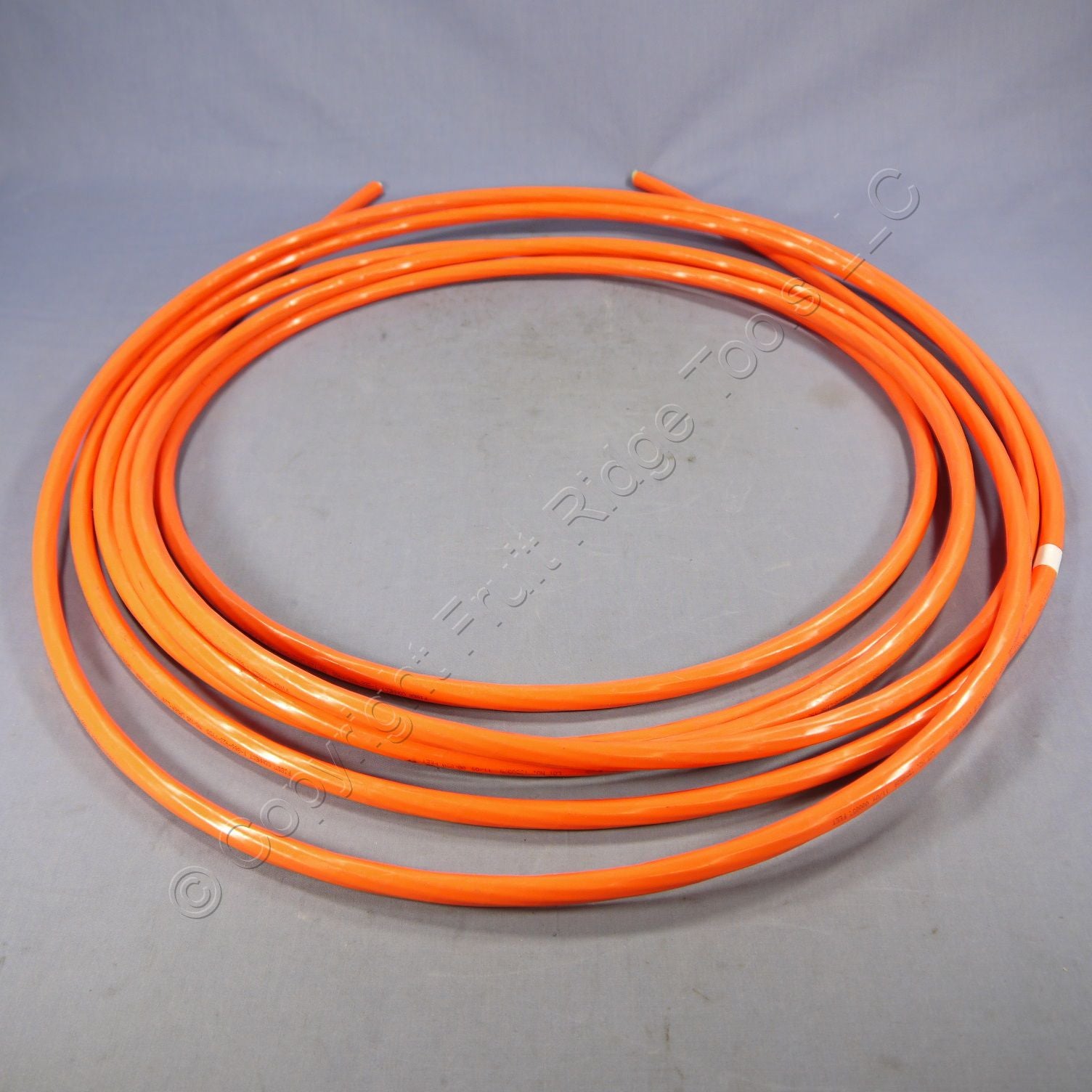

32 feet AFL 96-Fiber sub-unitized Premise MicroCore Cable. Sub-unitized Premise MicroCore Cables are ideal for high performance premise installations where space is a premium. The round cross-sectional building blocks combine to provide a tight package, while enabling high density architecture. Each 12-fiber sub-unit consists of 250 �m colored fibers and aramid strength members enclosed by a high performance jacket. The sub-units are designed to be independently routed in FMS systems. Features include:

• In-building cable runs where space is a premium
• Trunk applications where flexibility and small required bend radius are needed to route cable
• High density cable areas like Data Centers and Central Offices
• Lower cost cable runs where easy handling of tight buffered fibers not needed because cable will be spliced to factory terminated pigtails
• Trunk cables where MTP can be directly terminated on subunits
• Plenum NFPA 262 rated
• Tested to meet or exceed EIA/TIA 568-B3, Telcordia GR-409-CORE and ANSI/ICEA S-83-596
• Flexible dielectric FRP central strength member in four position
• High performance PVC jacket
• No preferential bend typically found in stacked ribbon designs
• Small diameter/superior bend performance
• All aramid tensile strength members within sub-units
• Sub-units are suitable for direct termination with round boot MTP
• Compliant to Directive 2002/95/EC (RoHS)
• Nominal Diameter: 0.52in
• Tension Installation: 150lbs
• Tension Long-Term: 45lbs
• Bending Radius Installation: 7.8in
• Bending Radius Long Term: 5.2in
• Maximum Attenuation (DB/KM) 850 NM: 3.0
• Maximum Attenuation (DB/KM) 1300 NM: 1.2
• Maximum Attenuation (DB/KM) 1550 NM: N/A
• Overfill Launch Min. Bandwidth (MHZ/KM) 850 NM : 700
• Overfill Launch Min. Bandwidth (MHZ/KM) 1300 NM : 500
• EMBc (MHZ/KM): 950
• Gigabit Ethernet min. Link Distance (Meters) 850 NM: 800
• Gigabit Ethernet min. Link Distance (Meters) 1300 NM: 550
• 10 Gigabit Ethernet min. Link Distance (Meters) 850 NM: 150
• 50/125�m multimode Laser-Link 150
• Tight Buffer Type: Bare
• AFL standard print
