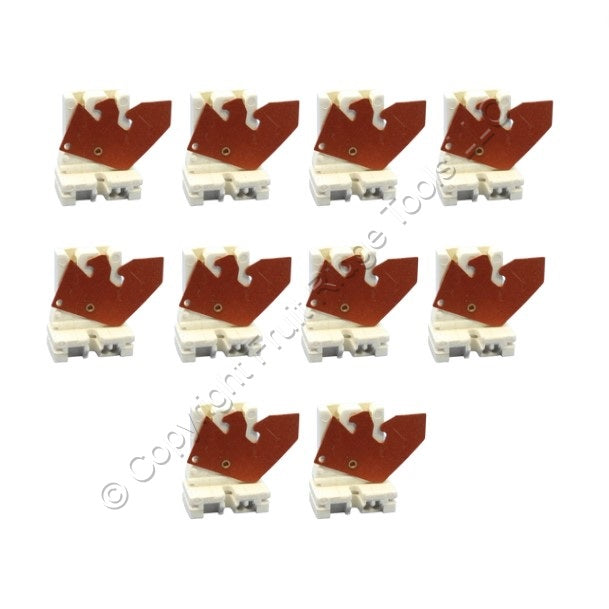

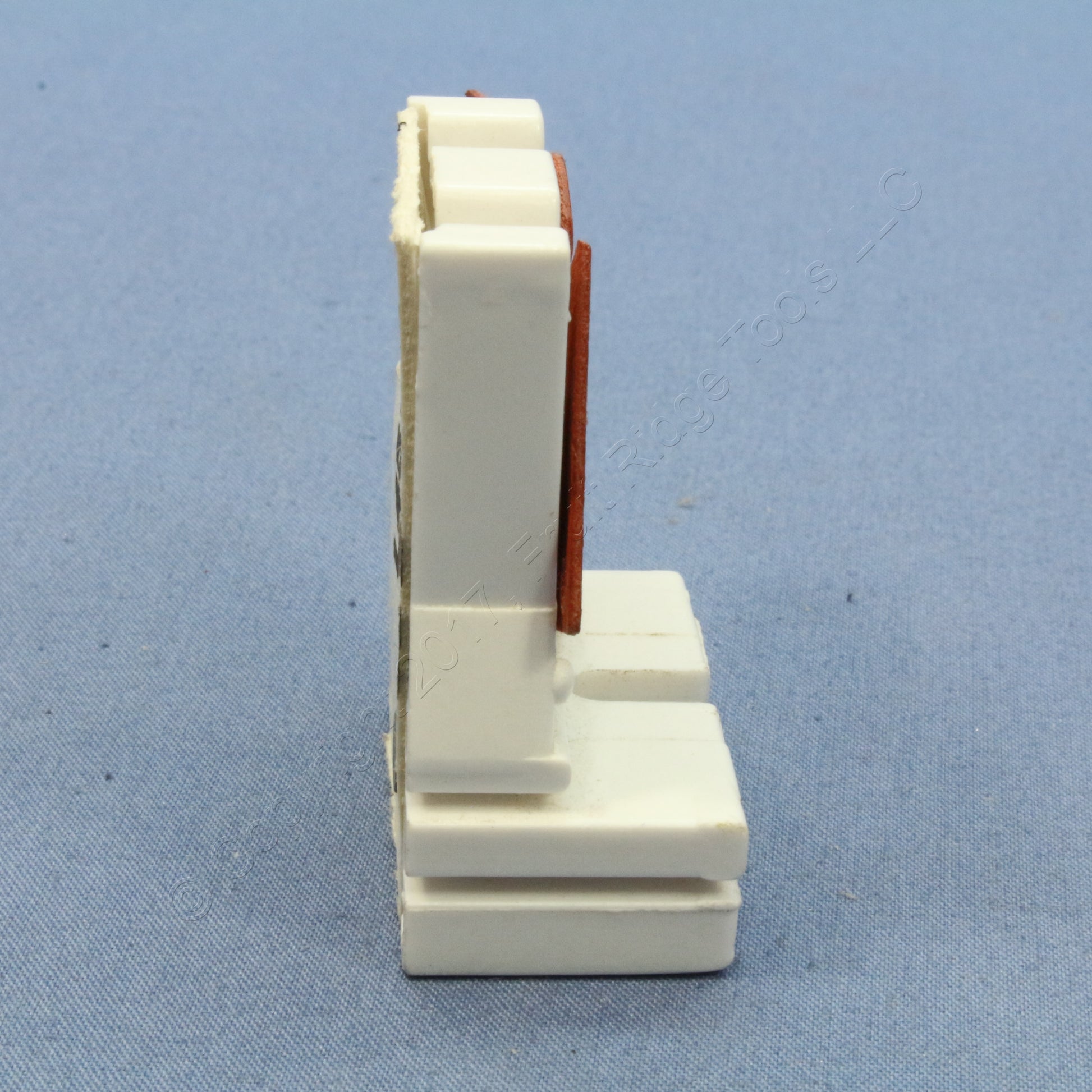

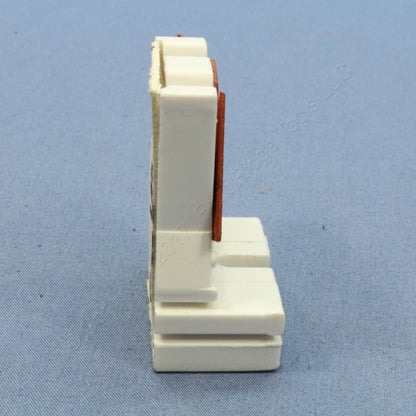

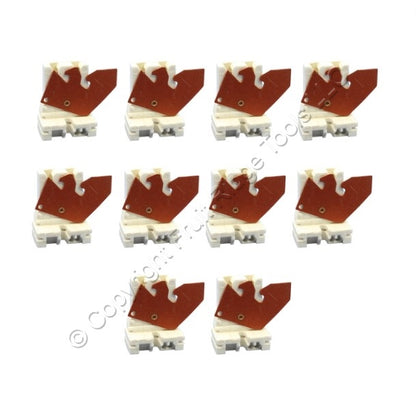

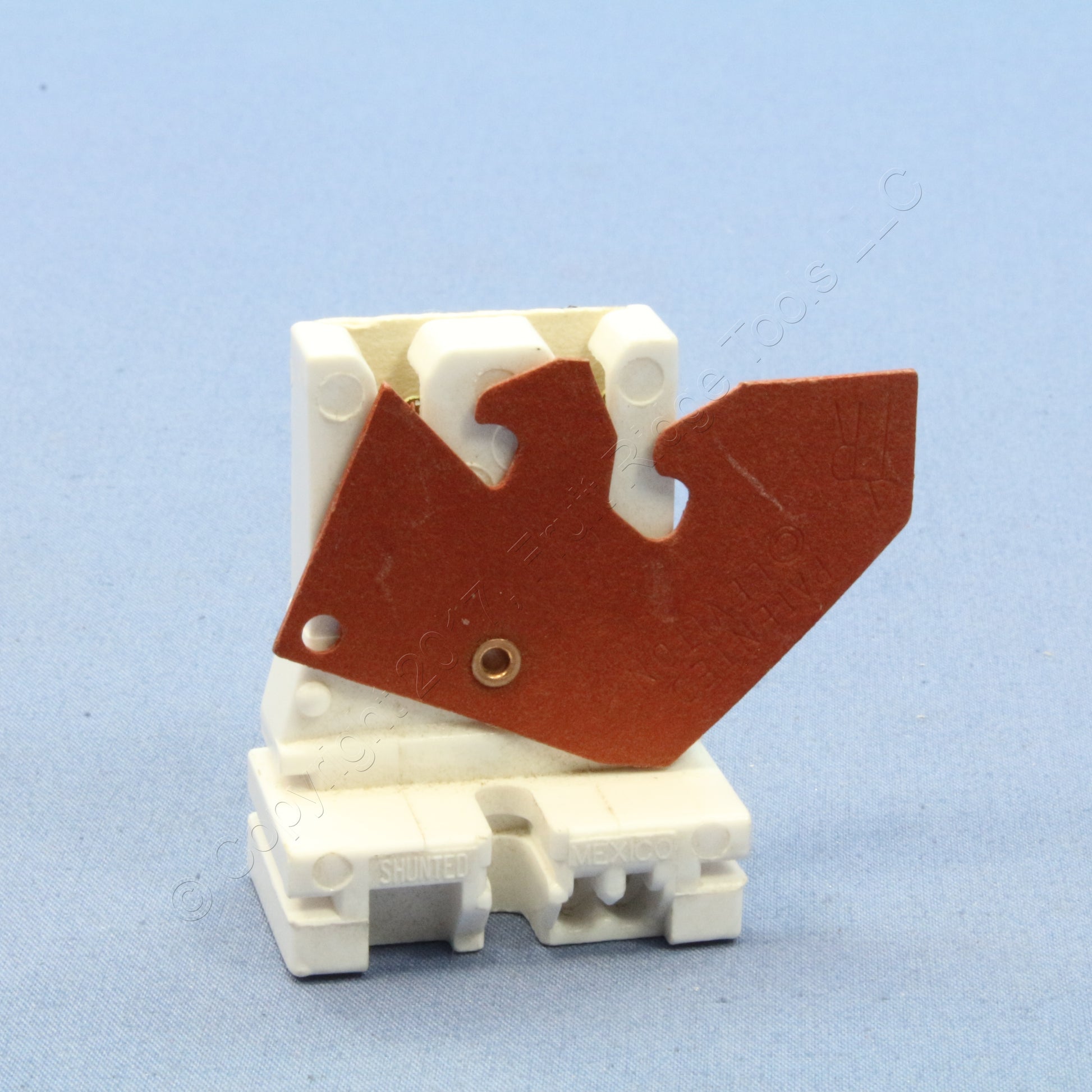

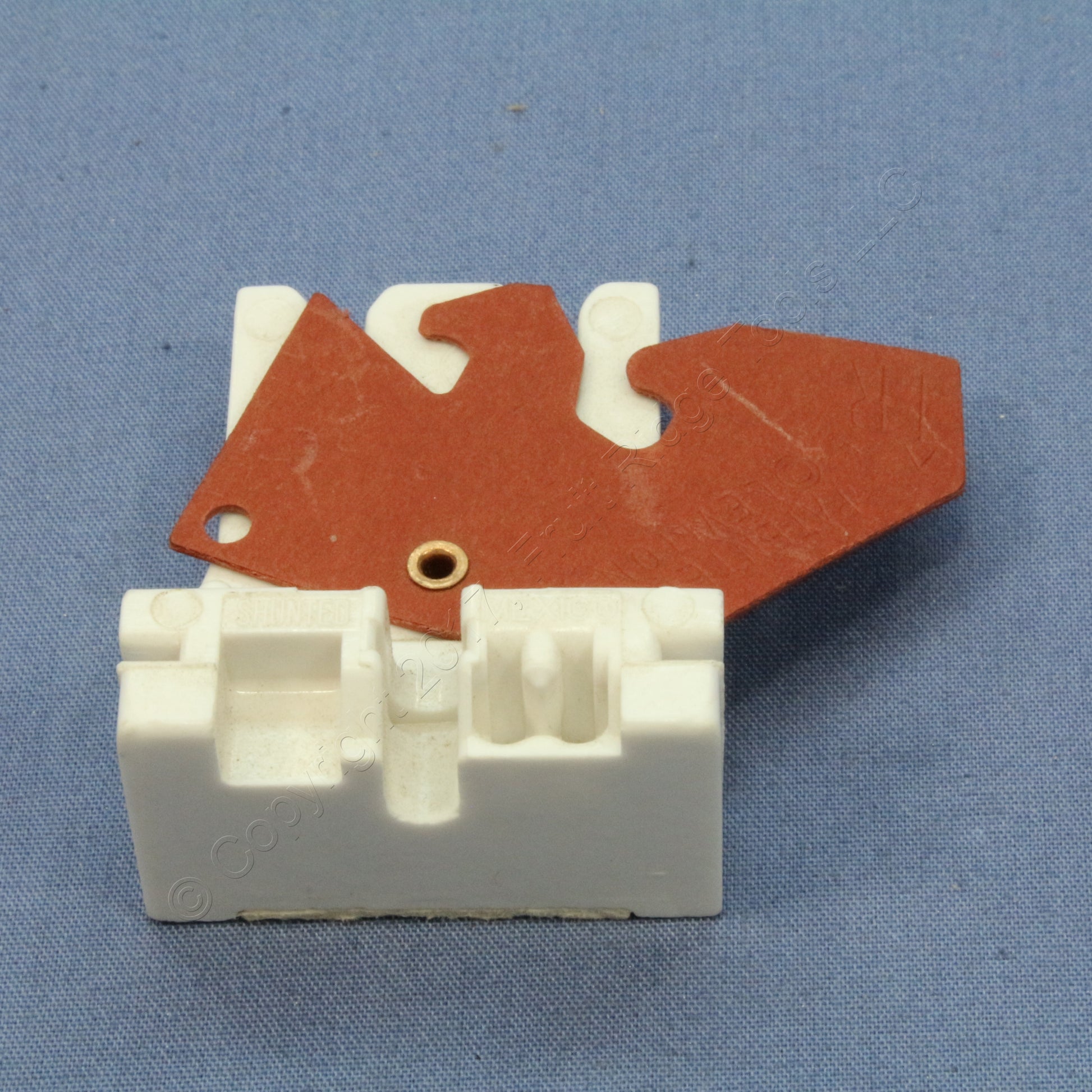

10 Leviton 23151-LU white fluorescent lamp holders for T-8 or T-12 lights. Low profile slide-on design with 0.88" center lamp height with movable red fiber self-locking lamplock eyeletted to body. Shunted lampholder is specially designed for use with electronic ballasts. Bulk packed loose with no individual packaging or instructions. Features include:
Movable red fiber self-locking lamplock is eyeletted to body - locks light in place
Medium Bi-Pin socket for T-8 or T-12 fluorescent lamps - G13 base
Provides easier fixture assembly by eliminating need for jumper-wire

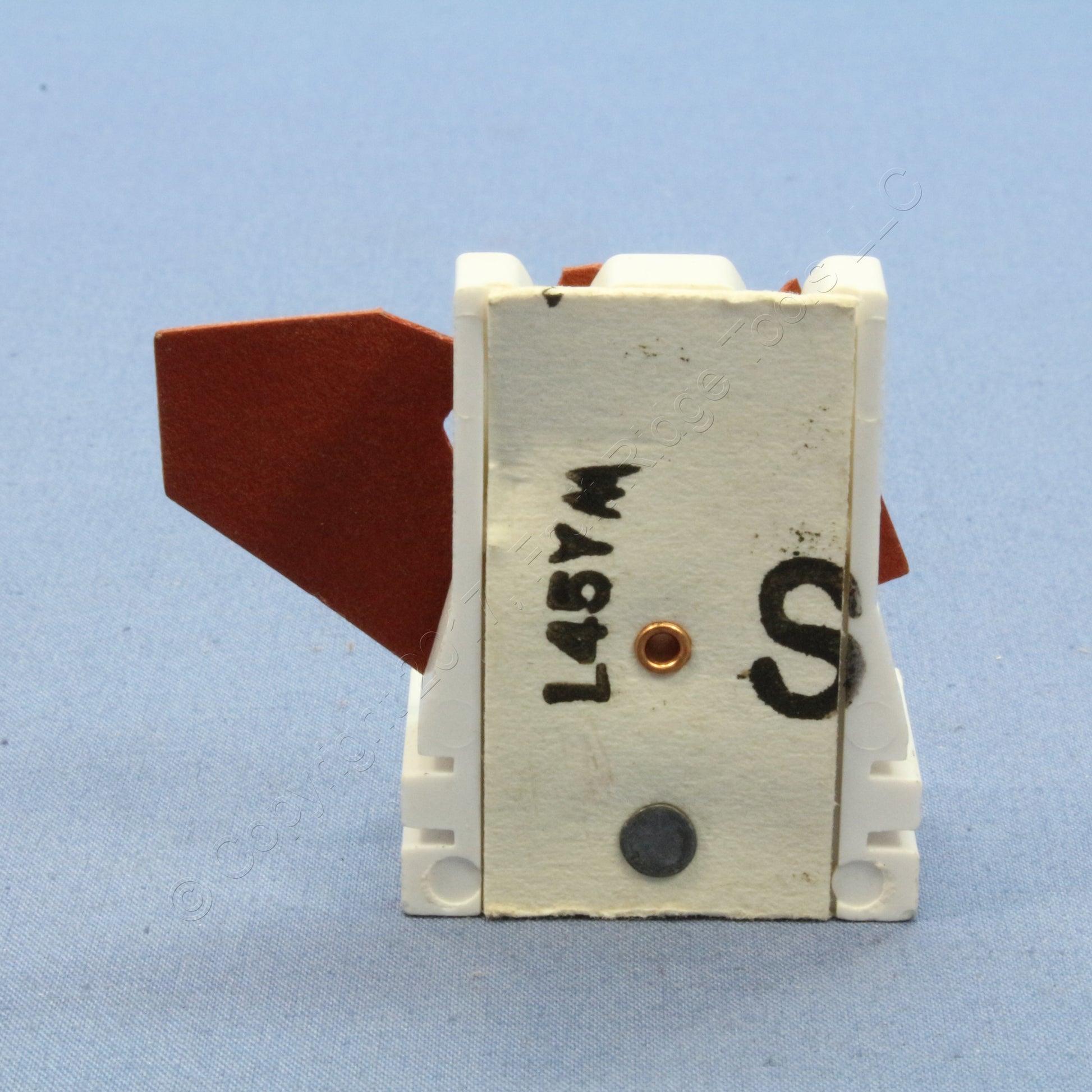

Large ?S? identifies shunted version
Specially designed for use with electronic ballasts
Recessed wire wells completely enclose conductor, insulating against shorts
Multiple terminal slots permit double connections at each contact
Extra low profile slide-on design - 0.88" lamp center height
Quickwire termination for 18 AWG solid wire or tinned stranded wire
Rated 660W 600V
For use with standard 18-20 gauge panel thicknesses - fits standard 1" wide panel openings
