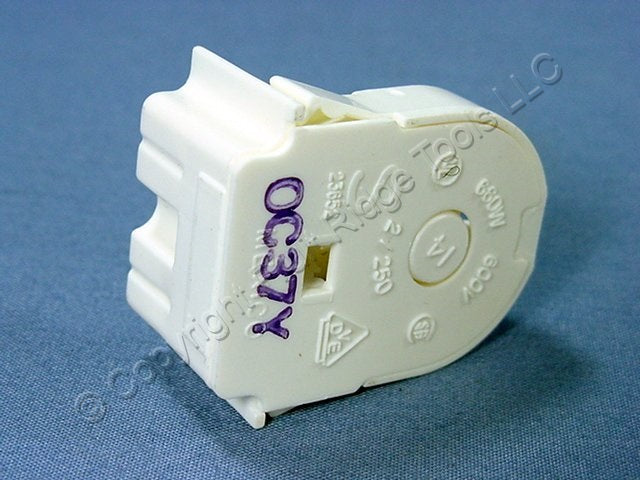

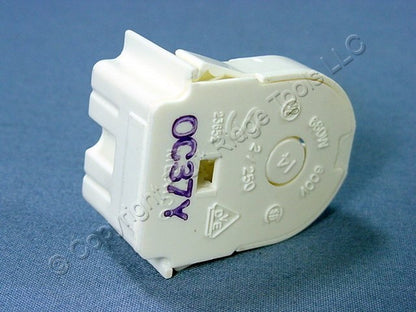

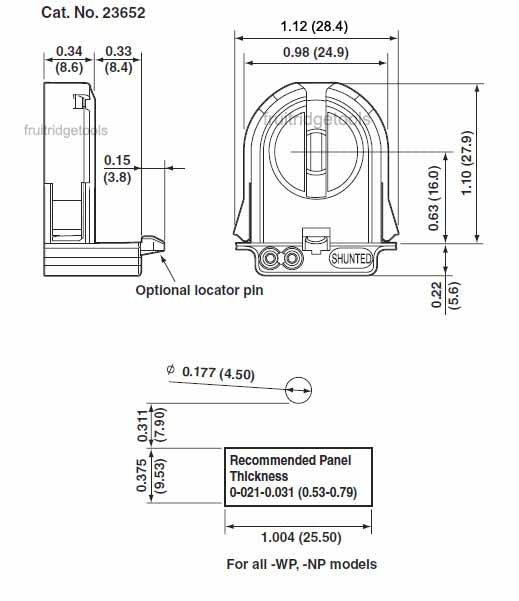

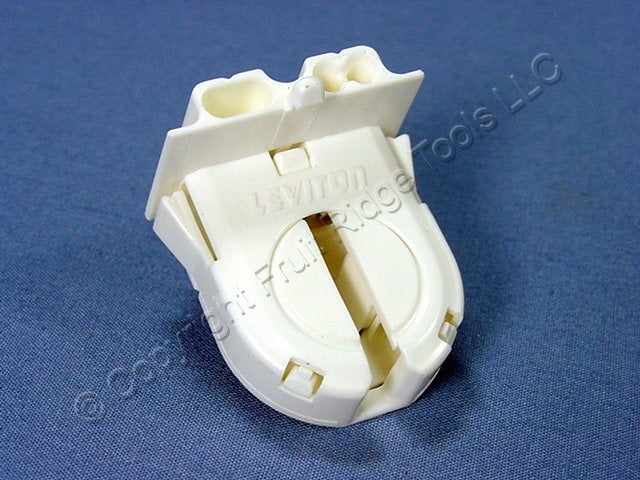

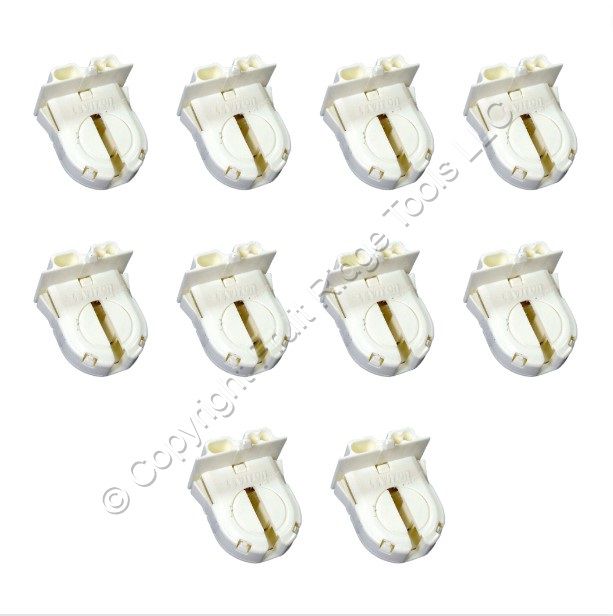

10 Leviton 23652-WP fluorescent lampholders for medium bi-pin T-8 lamps (not for T-12). Narrow fin design for use in 0.375" x 1.04" panel openings (see diagram in photo 4 for details). Extra low profile design with 0.63" lamp center height. Thermoplastic lampholder with front push-in wiring ports for easier access, snap-in or slide-on mounting options, knife-edge contacts and a 4-position, positive-stop lamp-lock that makes it simple for end-users to relamp in service. Fits thin 22 to 25 gauge panels that facilitate smaller, more cost-effective fixtures. Bulk packed loose with no individual packaging or instructions. Features include:
Medium Bi-Pin socket for T-8 fluorescent lamps - G13 base
Extra low profile design - 0.63" lamp center height
Easy snap-in or slide-on installation - built-in panel locator post
Shunted design for instant start ballasts
4-position, positive-stop lamp-lock socket for easy lamp changing
Quickwire termination for 18 AWG solid wire
Rated 660W 600V
Narrow fin design for use in 0.375" x 1.04" panel openings
For use with standard 22-25 gauge panel thickness (see diagram in photo 4 for details)
