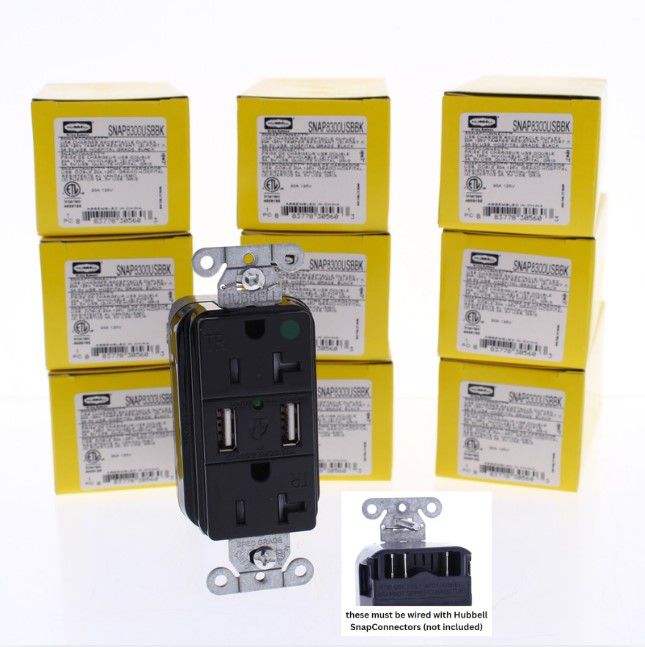

10 Hubbell Black Hospital Grade SnapConnect 20A TR Receptacles USB SNAP8300USBBK

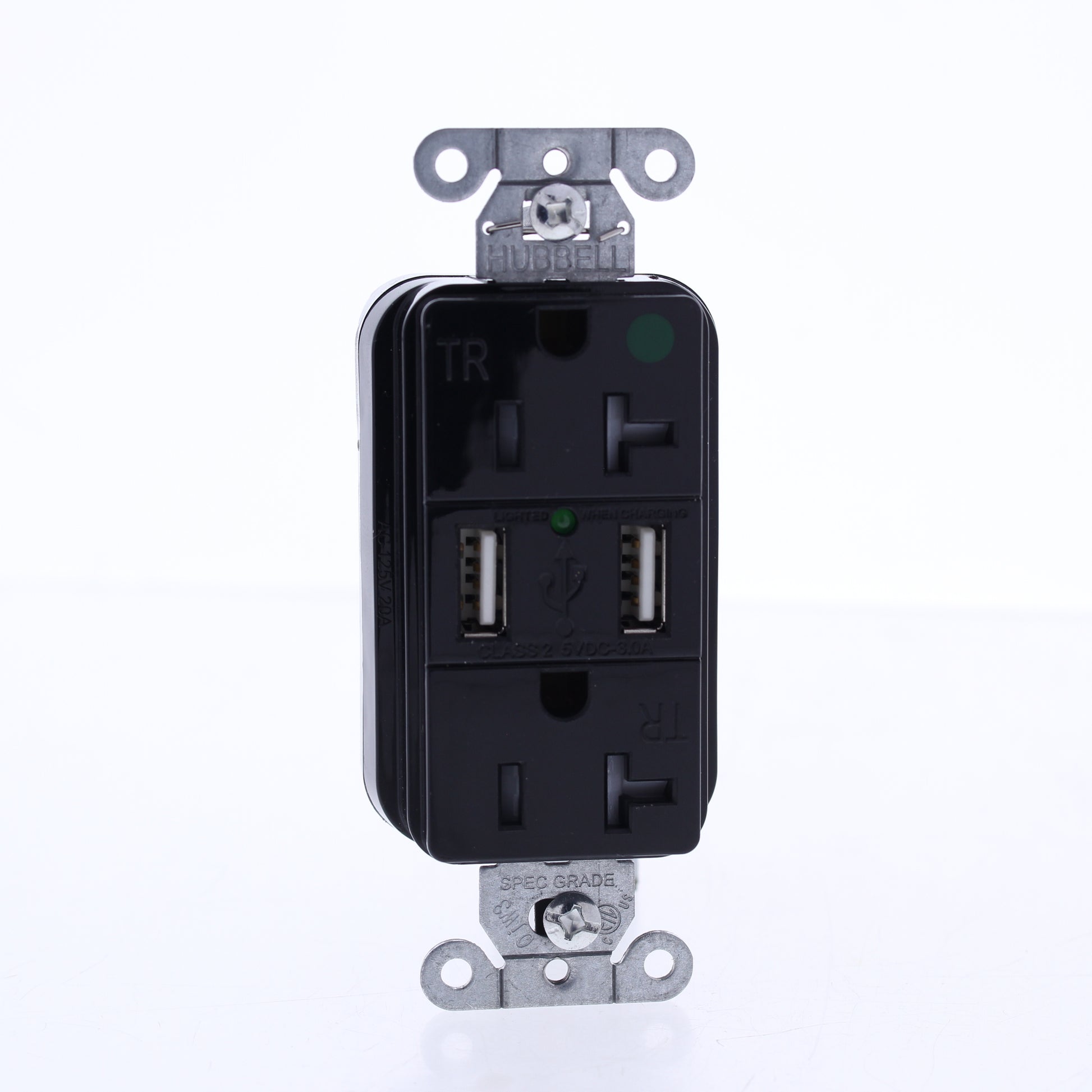

10 Hubbell SNAPConnect SNAP8300USBBK black tamper resistant decorator duplex hospital grade outlets with 2 USB charger ports.Please note that these do not have screw terminals; they must be wired with Hubbell SnapConnectors (purchased separately - part numbers listed below). SNAPConnect�s modular connector is installed during rough-in in lieu of pigtails. Once the walls are up, the protective covering is removed, and the terminal is simply snapped into the SNAPConnect device for a consistent connection every time. We do not have any SnapConnect terminals so you will need to buy them elsewhere if you do not already have some. Charge your USB powered electronics without giving up an outlet - Compatible with USB 1.1/2.0/3.0 devices. Hospital Grade, NEMA 5-20R, 2-pole, 3-wire, grounding, SNAPConnect wired, rated 20A 125V, two USB type 2.0 ports 3 Amp, 5 Volt DC . Features include:

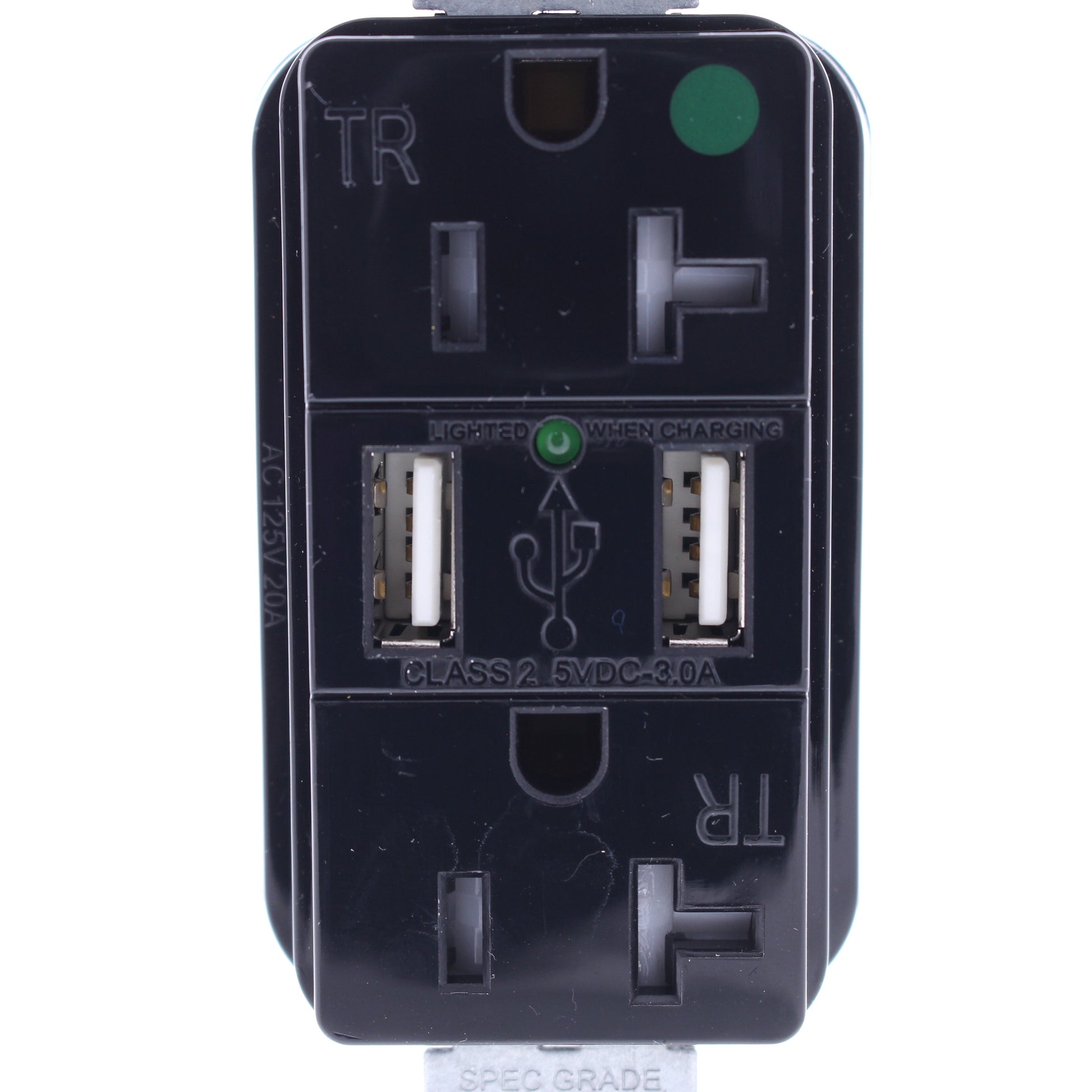

• Two USB ports 3 Amp, 5V DC, type A, class 2.0
• Charges two devices simultaneously
• Tamper-Resistant decorator duplex receptacle
• Green LED indicator to show USB power available
• Compatible with USB 1.1/2.0/3.0 devices
• Patented tamper resistant shutter design provides tamper resistance, not plug resistance

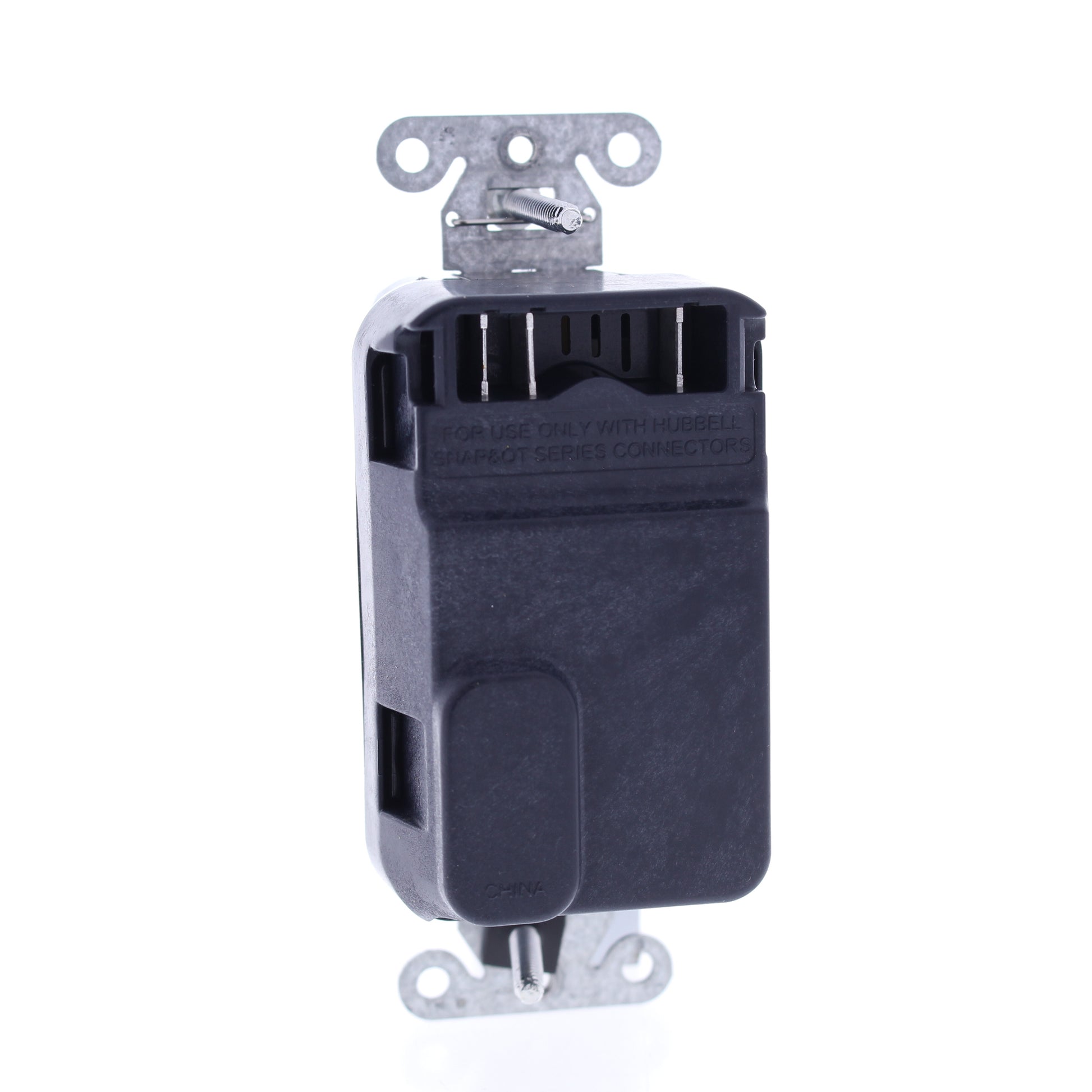

As was mentioned several times above, these receptacles require SnapConnect pigtail terminals which are purchased separately to be installed. Here is a list of compatible Hubbell SnapConnect pigtail terminals. We do not have any of the SnapConnect terminals so you will need to buy them elsewhere:

• SNAP1RA: Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP2RA: Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP1RNA (Assembled in USA): Solid Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
• SNAP2RNA (Assembled in USA): Stranded Wire; Clear right angle terminal with 6" leads, 600V, #12 AWG THHN/THWN-2, Polycarbonate housing material
