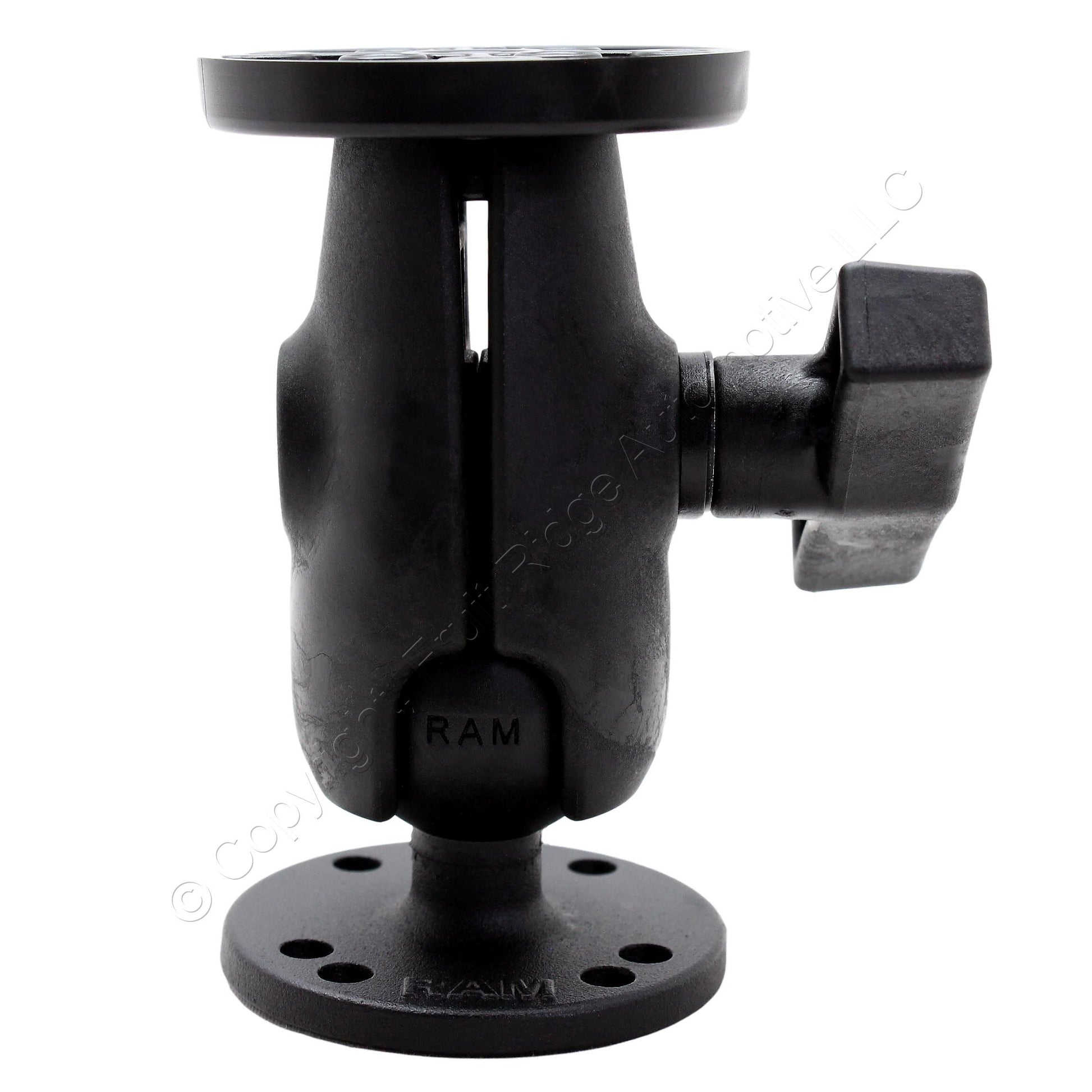

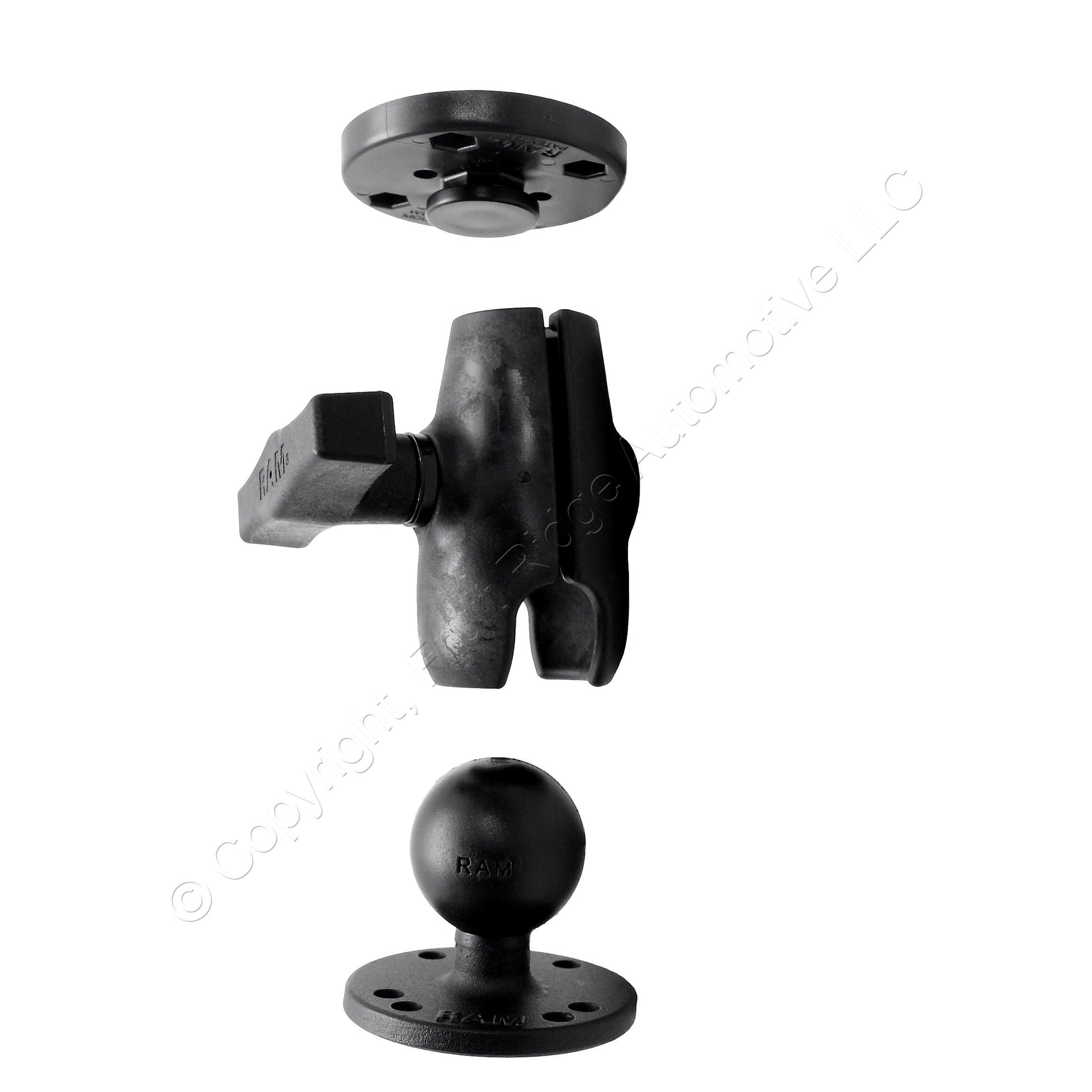

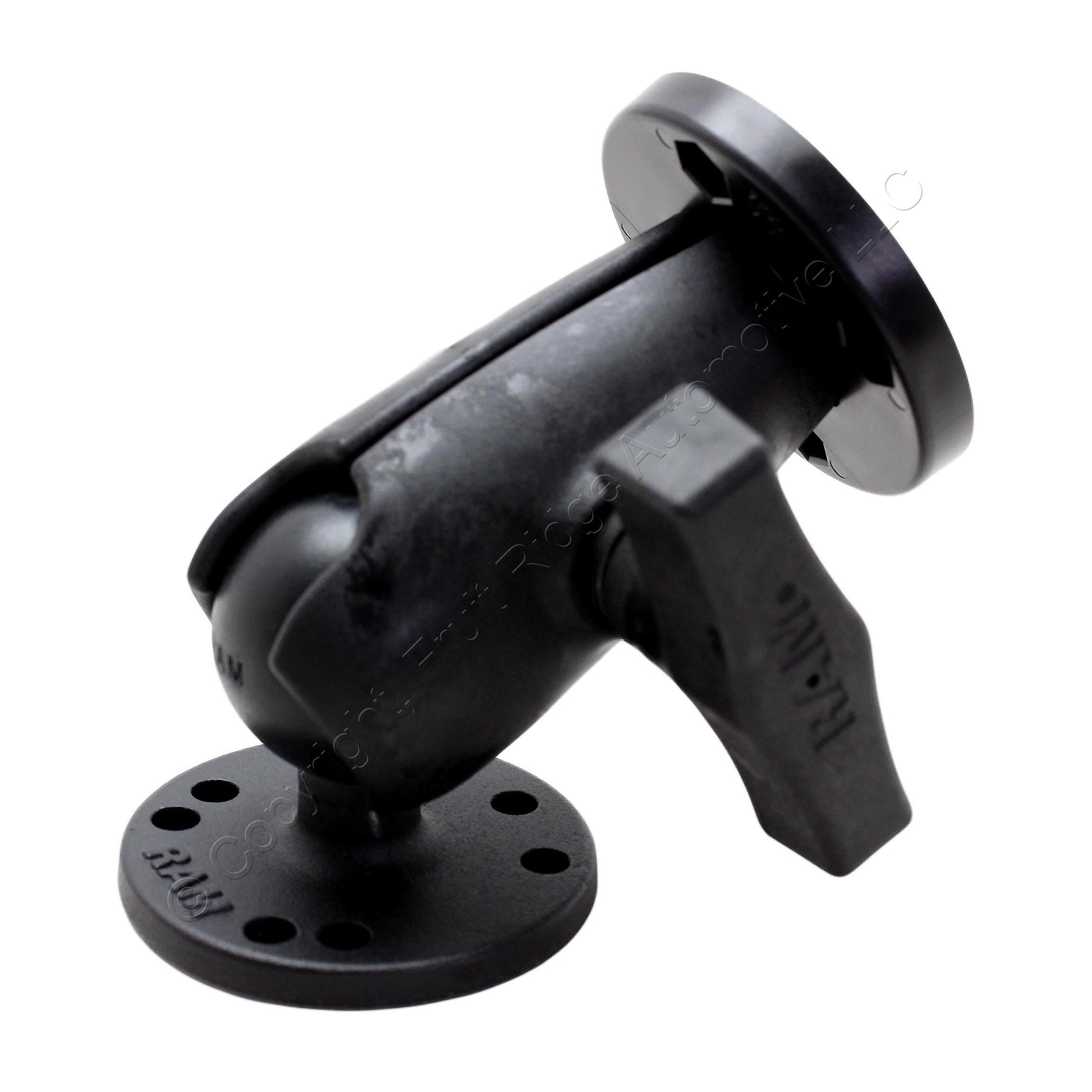

This listing is for a combination of RAM-202U-IN1 (1.5" ball on a 2.5" base) + RAP-293U (1" button on a 2.5" base) + RAP-200-1U (single socket arm).

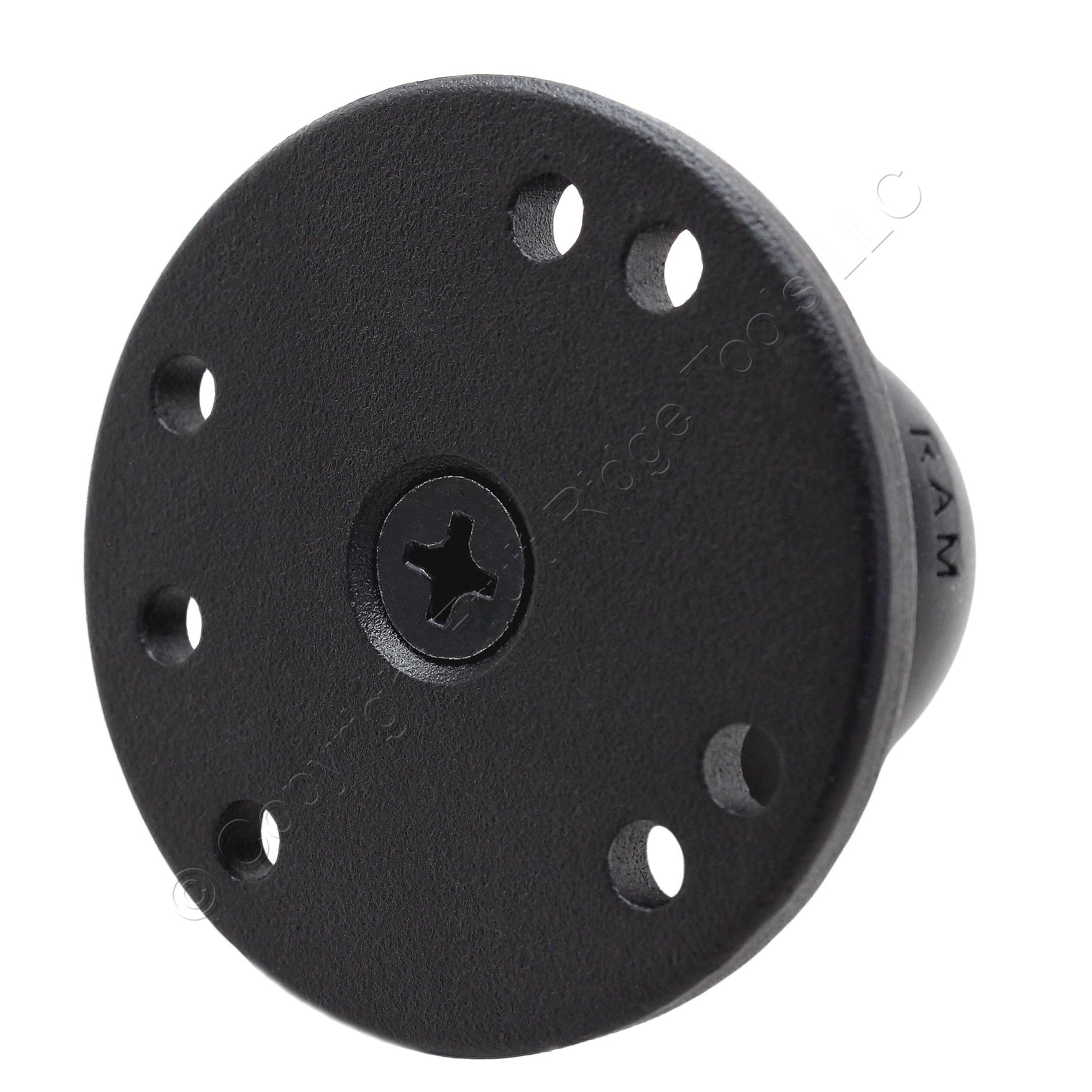

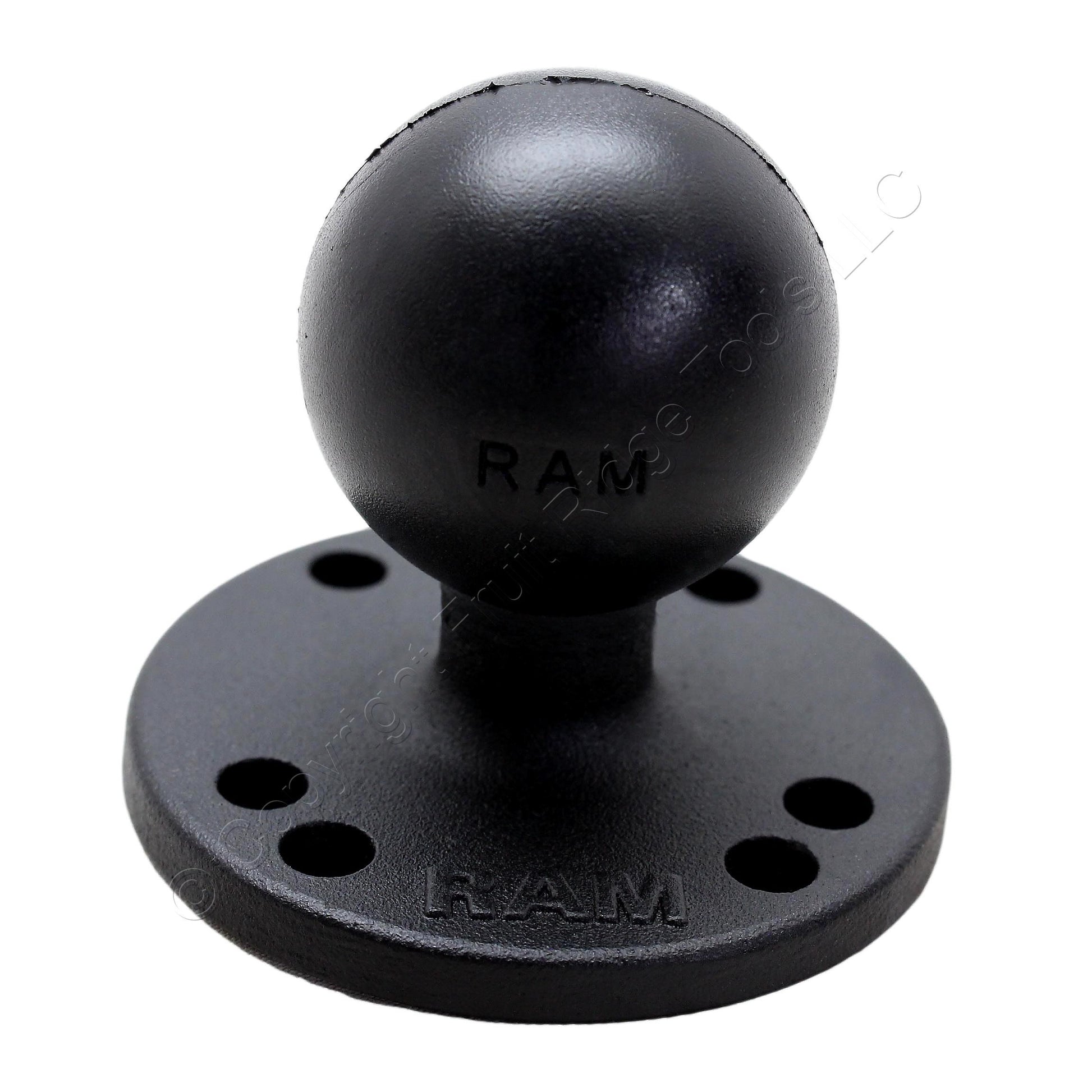

RAM� Mount #RAM-202U-IN1 is a round 2.5" flat base with a 1.5" diameter rubber ball (C Size). The mount has seven pre-drilled holes which include the universal AMPS hole pattern. There is a steel reinforced post (bolt) that is connected to the rubber ball. Each is individually packaged. Features include:
4-Hole AMPS: 1.181" x 1.496" hole pattern
3-Hole 120-Degree: 1.812" Diameter hole pattern
C Size (1.5") ball size
Standard weight capacity is 4lbs (Heavy Duty use is limited to 3lbs)
The most common screw sizes for the holes in the plate are #8, #10, M4 and M5 screws
Pairs with any RAM� Holder (which comes with the necessary mounting hardware)

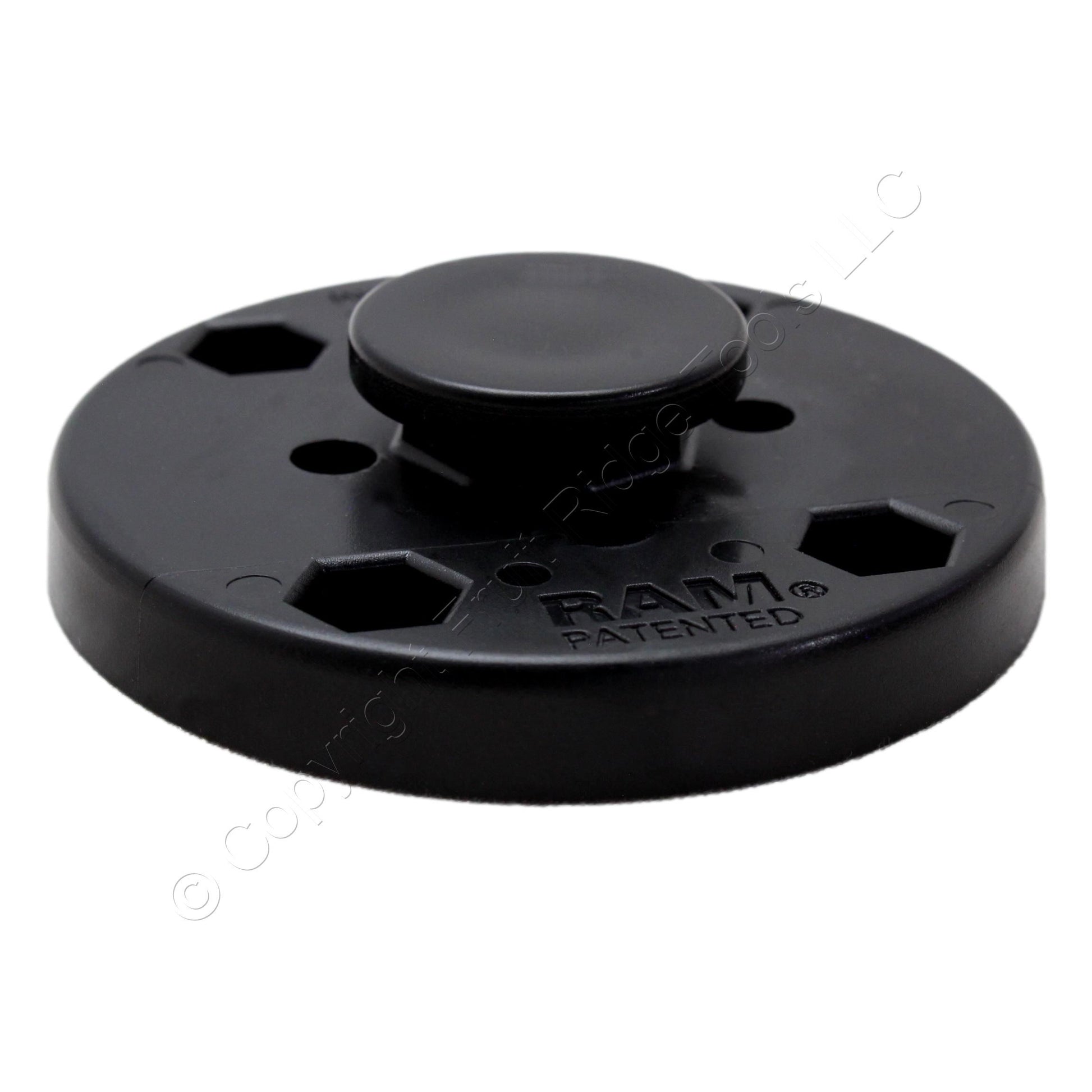

RAM� #RAP-293U is a universal plate with four pre-drilled holes that match the AMPS hole pattern. The 2.5" plate has a 1" diameter round male button on an Octagon neck. Each is individually packaged. Features include:
4-Hole AMPS: 1.181" x 1.496" hole pattern
High strength composite
1" diameter button
Octagon neck connects button to the round base

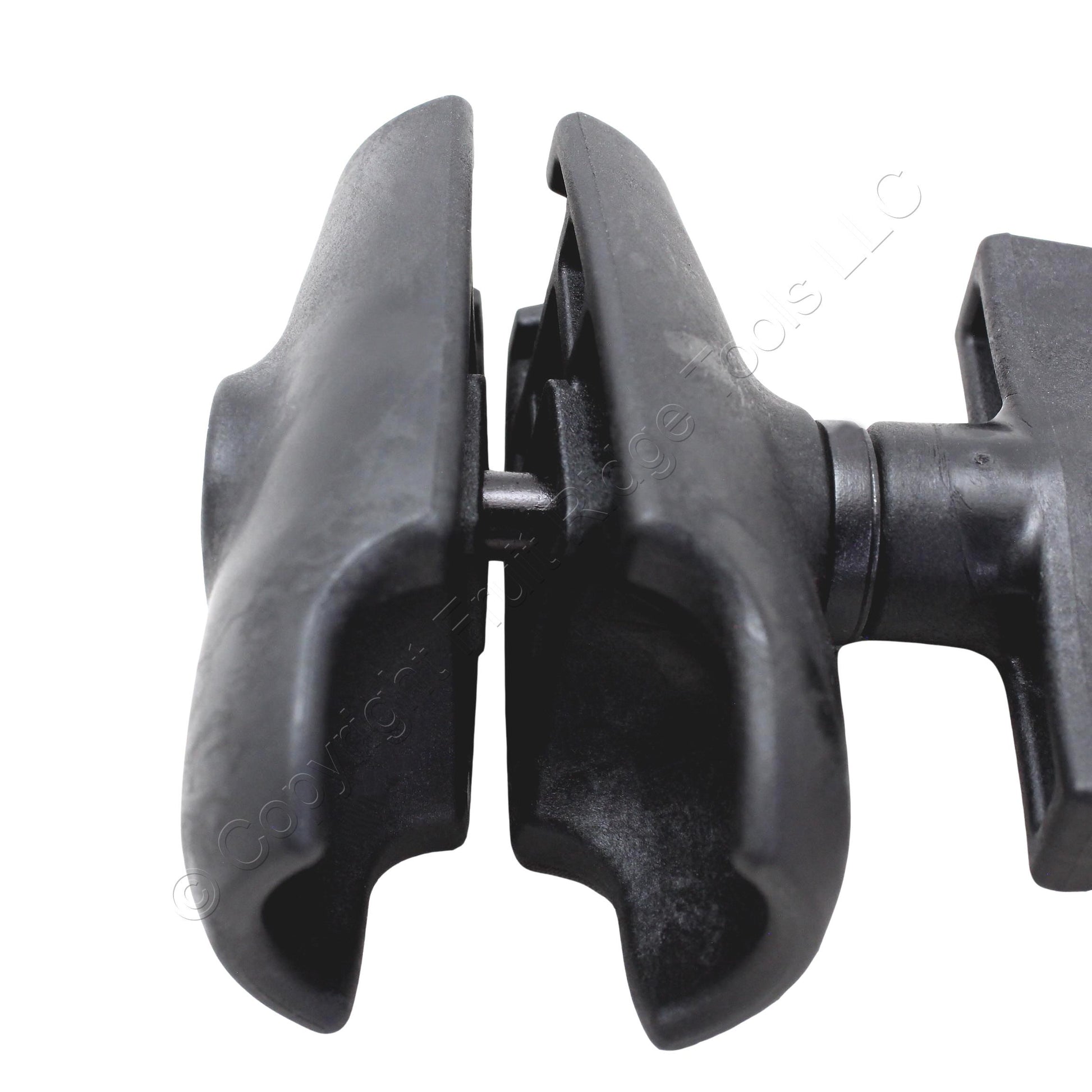

RAM� #RAP-200-1U is a single socket arm compatible with C-Sized (1.5") balls and octagon button components. This socket can also be used with a variety of pipe mounts and couplers. Each is individually packaged. Features include:
Standard use weight capacity is 4lbs (Heavy Duty capacity is 3lbs)
